Bearings in use

Stocking the best quality
Codex bearings for you

All tested according to ISO 2859, we have every bearing you could need.

SKF Bearings

SKF Bearings are one of the most popular brands of bearings alongside CODEX and FAG. SKF manufacture virtually every type of bearing for most industrial applications.

Single Row Radial Ball Bearings

The most widely used type of bearing as they are versatile, simple in design, suitable for high speeds, and robust in operation. Manufactured in metric and imperial sizes, they range from 3mm to 260mm or 1/8” to 16” bore.

Available in sealed versions which stay lubricated for life. Special types for high temperatures, with special greases, snap rings, and grooves.



Three single row radial bearings

Download Our PDF on Single Row Radial Ball Bearings

Double Row Radial Ball Bearings

Double row radial bearings are similar in design to the single row radial bearings.

The inside and outside diameters correspond to the 62 and 63 series bearings but with a greater width which gives a much higher load carrying capacity.



A silver double row radial ball bearing

Download Our PDF on Double Row Radial Ball Bearings

Double Row Self Aligning Bearings

These bearings have two rows of balls and a common sphered raceway in the outer ring. The self-aligning bearing has the lowest friction of all bearings which allows it to run cooler even at high speeds.

Both metric and imperial sizes are available, ranging from 5mm to 240mm, or 0.5” to 6”.

A selection of aligning bearings

Download Our PDF on Self Aligning Bearings

Single Row Angular Contact Bearings

Single row angular contact bearings are designed to accommodate axial loads acting in one direction only. They are non-separable bearings and commonly have a 40 degree contact angle to support heavy loads.

Matching pairs need to be mounted immediately adjacent to each other and they are available in a wide range of metric and imperial sizes.

Different sized and shaped contact bearings

Download Our PDF on Angular Contact Bearings

Double Row Angular Contact Bearings

Our double row angular contact bearings come in a range of imperial and metric sizes to suit you.

Discuss your requirements with our experts.

One double row angular contact bearing

Download Our PDF on Double Row Angular Contact Bearings

Single Row Cylindrical Roller Bearings

These bearings can accommodate heavy radial loads and high speeds. They are manufactured in many different designs to suit your needs.

The main difference between different types of single row cylindrical roller bearings is the configuration of the inner and outer race flanges.

A selection of single row cylindrical roller bearings

Download Our PDF on Single Row Cylindrical Roller Bearings

Single Direction Thrust Ball Bearings

Single direction thrust bearings consist of three parts; a shaft washer, a housing washer, and a ball and cage thrust assembly. Each part is separable so mounting is simple.

These bearings can only accommodate thrust and locate a shaft in one direction. They must not be subjected to any radial load. Available in a range of metric and imperial sizes, these bearings come in 3mm to 670mm or 0.25” or 18”.

Selection of single direction thrust ball bearings

Download Our PDF on Single Direction Thrust Ball Bearings

Double Direction Thrust Ball Bearings

These bearings are basically a doubled up version of the single thrust bearing. With one shaft washer, two housing washers, and two ball and cage assemblies, each part is separable for simple mounting.

Double direction thrust ball bearings can accommodate thrust in both directions; however they must not be subjected to any radial load. Available in metric sizes from 10mm to 150mm.

Diagram of double direction thrust ball bearings

Download Our PDF on Double Direction Thrust Ball Bearings

Cylindrical Roller Thrust Bearings

Cylindrical roller thrust bearings are ideal for heavy axial loads. They are insensitive to sensitive shock loads, very stiff, and require little axial space. As standard, they are only available as single direction bearings and can only accommodate thrust in one direction.

Available in metric sizes, these bearings range from 15mm to 630mm. Larger sizes can be made to order.

Selection of cylindrical roller thrust bearings

Download Our PDF on Cylindrical Roller Thrust Bearings

Spherical Roller Bearings

Using a double row of rollers that are thicker in the middle and thinner on the ends, the outer raceway is sphered whilst the inner is shaped to hold the two rows of roller which allows the outer to accommodate misaligned loads.

Six different spherical roller bearings

Download Our PDF on Spherical Roller Bearings

Plain Spherical Bearings

Available in both metric and imperial sizes, we can create bespoke orders for plain spherical bearings for you.

Speak to us about your requirements.

A silver plain spherical bearing

Download Our PDF on Plain Spherical Bearings

Taper Roller Bearings

Taper roller bearings, otherwise known as cup and cone bearings, are designed to handle large axial and radial loads simultaneously.

They are separable components made up of the outer ring known as the cup, and the inner ring which is attached to the cage and rollers known as the cone.

Selection of taper roller bearings

Download Our PDF on Taper Roller Bearings

Needle Roller Bearings

These bearings use a small cylindrical roller inside. A needle bearing has a large surface area that is in contact with the outer surface. There is less added clearance so they are much more compact.

Needle roller bearings come in a wide variety of specifications for different uses. Ask us for more information.

Needle roller bearings

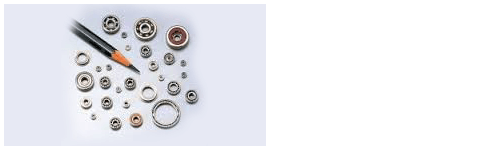

Miniature Bearings

We stock and supply a comprehensive range of miniature ball bearings.

Metric and imperial bearings are available, typical bore sizes of miniature ball bearings start at 2mm with outside diameters as small as 5mm.

The range incorporates open, closed, shielded or sealed ball bearings also flanged ball bearings.

Miniature bearings are available in chrome steel and stainless steel.

Miniature bearings

Download our PDF on miniature bearings
